ReverseFlow Grill Smoker 20" XL / 8 mm / with smokehouse

instead 3.599,00 EUR
from 3.059,15 EUR
incl. 21 % Tax excl. Shipping costs
Product No.:
NL20XLRF-R-8
Shipping time:
1-3 weeks (Ausland abweichend)
Print data sheet
Print
Wishlist
Thermometer:
Thermom. in smokehouse:
Execution:
Stainless steel grates:
Grill grates 2nd level:
Structure:
Ribs holder:
Rain cover:
Side table:
Fire grate(s) for cooking chambe:
Heat management plate:
Wheels with rubber:
Cover spacer:
Swivel arm:
Cast iron kettle:
Door counter weight (Cook. chamb:
Rotisserie (without motor):
Firebox front shelf:
Paint for repair 400 ml:
BBQ Turner:
Skewers, stainless steel:
Grill brush and scraper:
Busting Brush:

- +

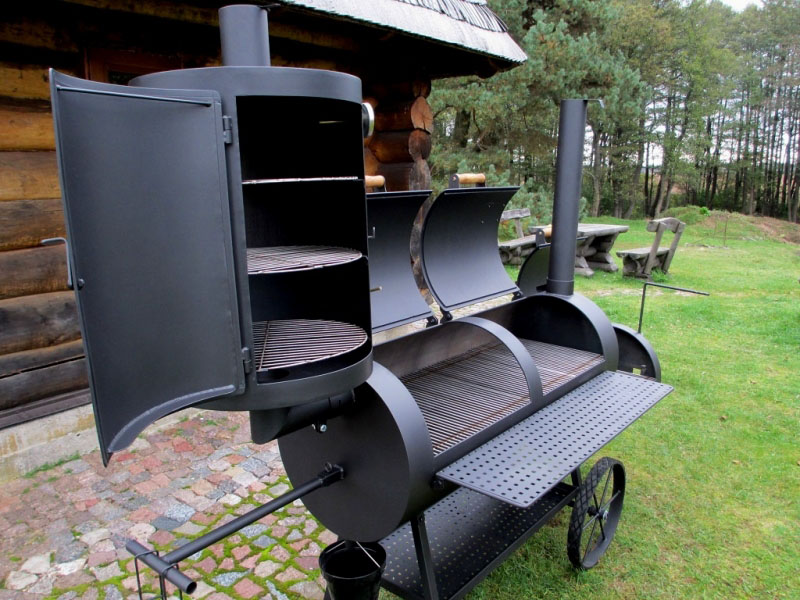

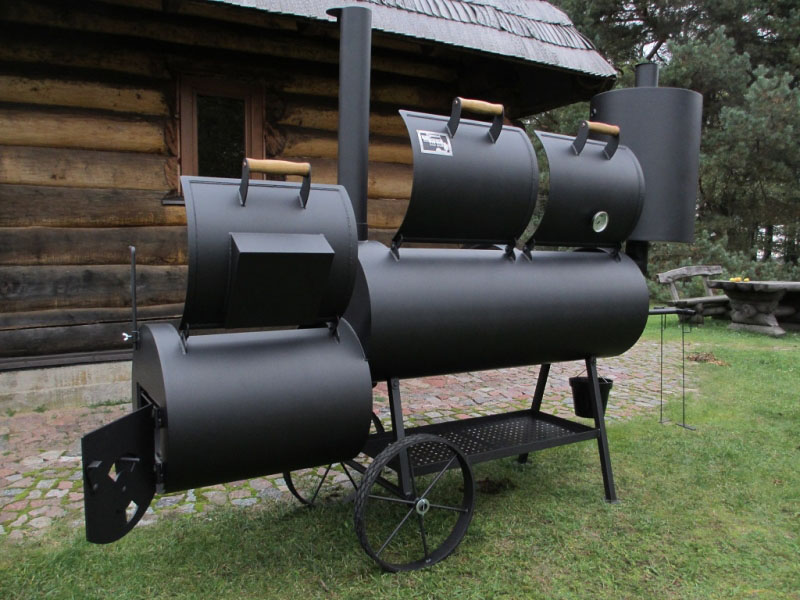

The Nette Lette Reverse flow offset Smoker Grill diameter 20 inches XL version /  8 mm / with removable smokehouse

Our hand-made Barbecue Smoker Grills have been made from solid steel meeting a high-quality standard.
Nette Lette BBQs have been designed for both experienced and hobby grill fans.

Classically-designed high-quality Smoker grills on wood or charcoal will make you the star of the garden BBQ thanks to their durable materials (8 mm STEEL) for many years to come. Thanks to these materials ambitious barbecuing is possible. They are ideal for gentle cooking with warm air, as well as for roasting and boiling. The Grill Smoker 20" is suitable for all kinds of direct and indirect grilling.

Reverse flow Smoker - the hot smoke gases are first directed from the heating chamber through a closed system on the base of the cooking chamber underneath an intermediate plate on the other side of the cooking chamber. The smoke only enters the cooking chamber here where it spreads out and directed out of the side of the heating chamber through a chimney.
The design of the Reverse Flow Smoker helps spread the smoke gases in all corners of the cooking chamber without having to pay attention to the temperature differences at start and end of the cooking chamber.

The benefits of the Grill Smoker with removable smokehouse:

  • The smoke tower is easy to remove and put a smoke flue in its place.
  • The smoke tower is very good for smoking as it has a very large temperature difference over the cooking chamber. For example, if you want 120° to 140° in the cooking chamber, you will have 50° to 60° in the vertical smoke tower.

They are ideal for gentle cooking with warm air, as well as for roasting and boiling, cold- and warm-smoking. Thanks to its vertical smoking chamber, you can also cold-smoking and warm-smoking hanging products with this grill device. You can slow smoke sausage, cheese, fish & jerky in the vertical chamber, while smoking ribs, pork, brisket & chicken in the horizontal chamber and, if you want, grill steaks, burgers and hot dogs in the firebox all at the same time.



Data, equipment, properties:

Dimensions (with chimney and carry handle): L x D x H: 235 x 87 x 190 cm
Weight : approx. 415 kg
Thickness of wall: 8 mm
Barbecue BBQ in inches: 20" (51 cm)
Cooking surface in cooking chamber: 130 x 50 cm
Cooking surface in heating chamber (firebox): 60 x 50 cm
Cooking surface in smoke tower 3 x Ø 50 cm

Vertical smoking chamber height: 60 cm
Working-, BBQ height : 80 cm

Reverse flow pipe is removable
Smokehouse is removable
Smoke pipe : Ø 80 mm
front tray (can easily be folded underneath or removed): 110 x 25 cm
Oak handles
Sturdy frame (removable)
Bottom shelf (easy to remove): 40 x 100 cm
Steel wheels : 40 cm diameter (removable)
Stainless steel grill grates in firebox, cooking chamber and smokehouse Ø 4mm (Ø 6 mm for cooking chamber and heating chamber available for an extra charge)
10 mm fire grate made of solid steel rods for the heating chamber
Built-in high-precision thermometer made in Germany
Adjustable vent opening in the fire chamber for controlling air intake and heat control
Smokehouse pipe with exhaust air control
Bars for hanging meat or fish at the top of smokehouse
Cooking plate above the firebox
Grip/carry handle (easy to remove)
An eyelet for a swivel arm on the firebox
Scraper for removing burning embers and cinders
Bin for fat and liquid waste

All edges and attachment parts have been sanded down. No risk of injury from sharp edges.
Our smokers are sand-blasted before painting to remove all dirt first- this makes the heat-resistant paint last longer.
Painted with 800°C heat-resistant high-quality branded paint.

Comes with:

2 x grill grates Ø 4 mm for combustion chamber (6 mm at extra charge)
4 x grill grates Ø 4 mm cooking chamber (6 mm at extra charge)
1 x fire/charcoal grate for firebox
1 x detachable smokehouse

1 x smoke flue (Reverse flow)
3 x stainless steel round grates Ø 50 cm for smokehouse
2 x bars for hooks the top of smokehouse
1 x front shelf on cooking chamber
1 x bottom shelf
1 x grip/carry handle
1 x grease bin
2 x scrapers for burning embers and cinders
1 x built-in standard thermometer (you can choose to replace it with a stainless steel thermometer).
2 x slots in cooking chamber for digital thermometer cables​
Cooking plate on firebox
Eyelets for swivel arm

Warranty: 10 years on housing
                3 year warranty on all moving parts
                2 year warranty on thermometer and accessories

We offer the following accessories for your grill smoker: Side table, grill grates 2nd level, cover hood, rubber-coated wheels, digital radio thermometer, fire grate for heating chamber, convection plates made of steel 4 mm or stainless steel 1 mm, revolving spit (motor not included), front shelf for heating chamber, cover spacer, swivel arm, cooking pot made of cast iron, touch-up paint 400 ml, stainless steel ribs holder, BBQ set of 3 pieces (stainless steel) , grill skewer set and brush.
You can also order a Grill Smoker with the heating chamber on the opposite side (left).
When purchasing a Grill Smoker with accessories, the accessories come at a lower price than if you order the accessories separately later.
Please note that the Grill Smoker cannot be retrofitted with the 2nd level grill grates, rotisserie set and front tray on the heating chamber.

If you want to order a Grill Smoker with special equipment, or you cannot find the right accessories you need, drop us a line we will always try to find a solution.
